Name: ACTEON SOPIX Dental X-Ray sensor size 2 Digital X-Ray
SKU: 2709
Availability: OutOfStock

ACTEON SOPIX Dental X-Ray sensor size 2 Digital X-Ray

$4,500.00

Out of stock

Want to be notified when this product is back in stock?

Category: Other X-Ray Equipment

Add to wishlist

Description

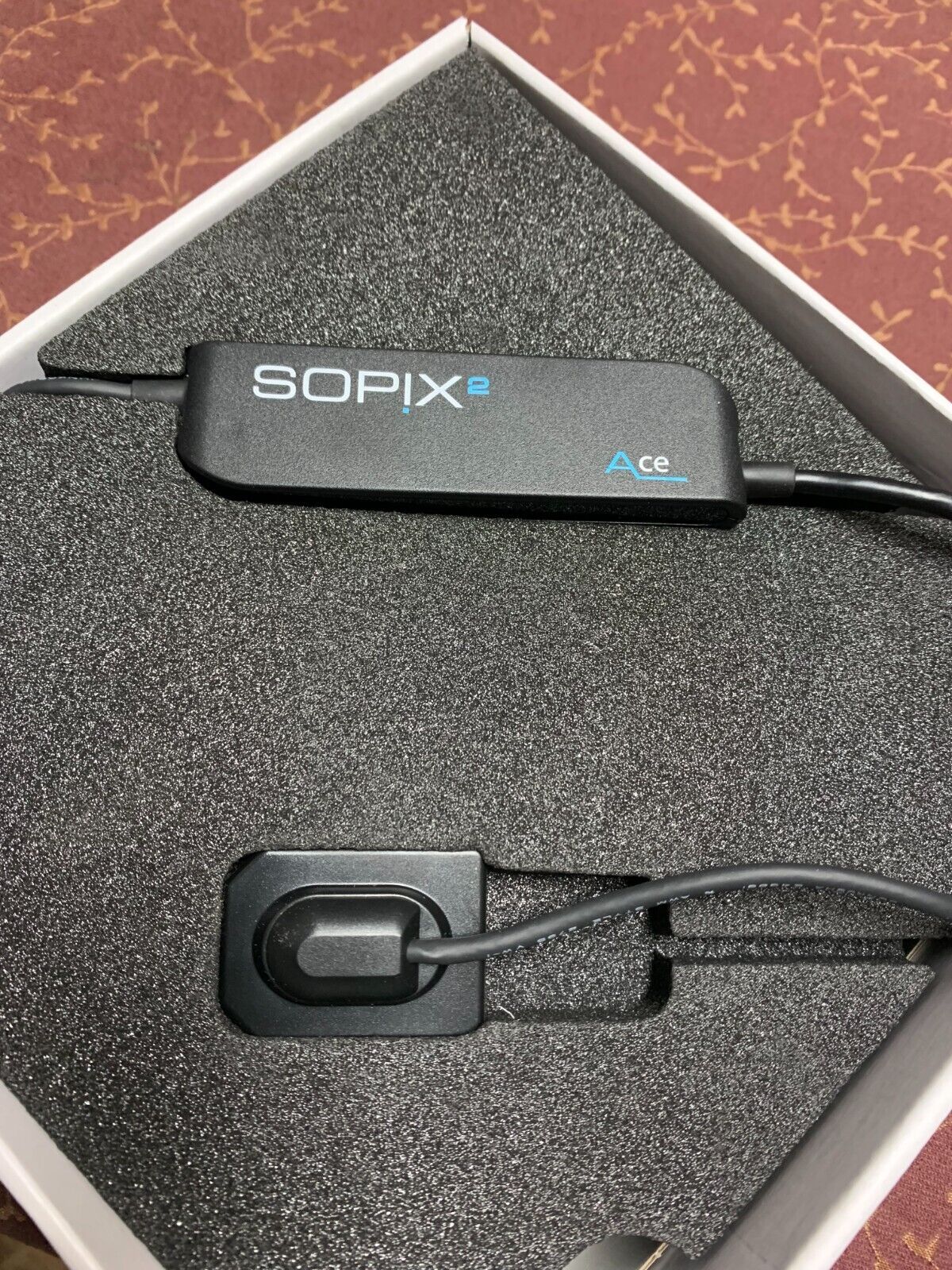

ACTEON SOPIX Dental X-Ray sensor size 2 Digital X-Ray

Sensors

Perfectly precise pictures Our CCD sensors offer 1.25 million pixels for Size 1 and more than 2 million for Size 2, producing very high definition X-rays whose quality is comparable to that offered by the best intraoral x-ray films. The picture is faithfully rendered in gray scales, enabling in-depth examination for precise and efficient diagnosis.
Hot plug and play technology To change between sensors of different sizes, all you have to do is press the connector, and you don’t have to worry about setting up the system configuration. Sopix immediately recognizes the sensor in the patient’s mouth and adjusts itself instantaneously.
Total reliability Sopix sensors use a technology offering a working life of around 100,000 images. Their excellent connector systems make inadvertent disconnection during use a thing of the past. Combined with a Rinn type holder, it is easy to focus on the area to be X-rayed and obtain a perfect shot.

Controller

The best picture quality ever obtained to date, thanks to E.C.S (Exposure Control System) technology.
Uniquely fast performance thanks to a 32-bit DSP processor

Your timer is set once and for all

Using the unique E.C.S (Exposure Control System) technology developed by SOPRO, Sopix compensates for over- and under-exposures on each acquisition, even when exposure times are very short.

This means that you only need to adjust your timer once for all your pictures.
Bad shots are a thing of the past: your pictures will always be usable and you’ll get constant quality over time.

Best acquisition time in its category
Thanks to its calculation power, Sopix enables you to render X-rays on screen in record time.
You’ll only wait 4 seconds between the moment you trip your timer and the moment the picture is displayed on the screen.

Less radiation exposure for the patients
By optimizing exposure times like this, you will reduce the radiation to which patients are exposed by 95% compared with conventional film and by 50% compared with an ordinary digital X-ray system.

Sopro Imaging’s ergonomics were specially designed for armchair operation.

Operations reduced to a minimum
Personalize the display and processing of your pictures to fit your working methods: every operational feature of the software can be configured, and grouped in the same processing area.
This means that you only need to display on the screen the six tools you use most often.
All the patient’s images (X-rays, color pictures, scanned documents, etc.) are within a click’s reach at all times.

Light and dynamic interface
Processing tools are represented by simple and intuitive icons that you simply drag-and-drop into position.
Sopro Imaging adjusts to the resolution of your screen and offers two display modes: full screen mode and design mode.

On-screen display The Sopix controller incorporates an illuminated signage system informing you of the status of the system at all times (available, acquisition in progress…).
The signage is displayed on screen simultaneously, and enables you to orient the picture before exposure so that your images are always facing the right way.
Ever ready Unique: Sopix is always ready to receive rays. This means that you don’t have to perform any software or hardware operations before or after acquiring each image. In just a few seconds, you will be able to take enough X-rays for a full mouth series and optimize your time in the chair.

Self-powered
Sopix is easy to install, and connects directly to your computer without the need for an outside power supply or any other conversion equipment.
Power consumption is very low, and the equipment can be placed up to 5 m away from your PC.

Compatible with your dental software
If your dental software is compatible with the international TWAIN standard, you will be able to incorporate the Sopix system right away.
Without changing your working methods, you’ll be able to draw on the many advantages offered by SOPRO digital dental X-ray technology.

Technical specifications

Sensor Size 1
External dimensions	25 x 39,5 mm
Active surface area	600 mm2 (20 x 30 mm)
Number of pixels	1,25 million
Pixel size	22µm x 22µm

Sensor Size 2
External dimensions	32 x 42,5 mm
Active surface area	990 mm2 (27,50 x 36,08 mm)
Number of pixels	2,05 millions
Pixel size	22µm x 22µm

Sensor technology

CCD and scintillator

True resolution

20 pl/mm

Theoretical resolution

22,7 pl/mm

Sensor cable length

2,00 m

Controller
Technology	DSP 32 bits

Connection

USB 1.1 and USB 2.0

Image acquisition in 4096 gray scales

Cable length

5 m

Image processing software

Sopro Imaging

Minimum configuration required:
500 MHz Pentium III
128 MB RAM
20 GB hard disk
2 USB ports
Operating System: Windows 98 SE, 2000 Pro and XP SP1 and above
Monitor resolution: 1024 x 768 and above

Recommended configuration
1.8 GHz Pentium IV
256 MB RAM
40 GB hard disk
4 USB ports
Operating System: Windows XP Pro SP1 and above
Monitor resolution: 1024 x 768 and above
